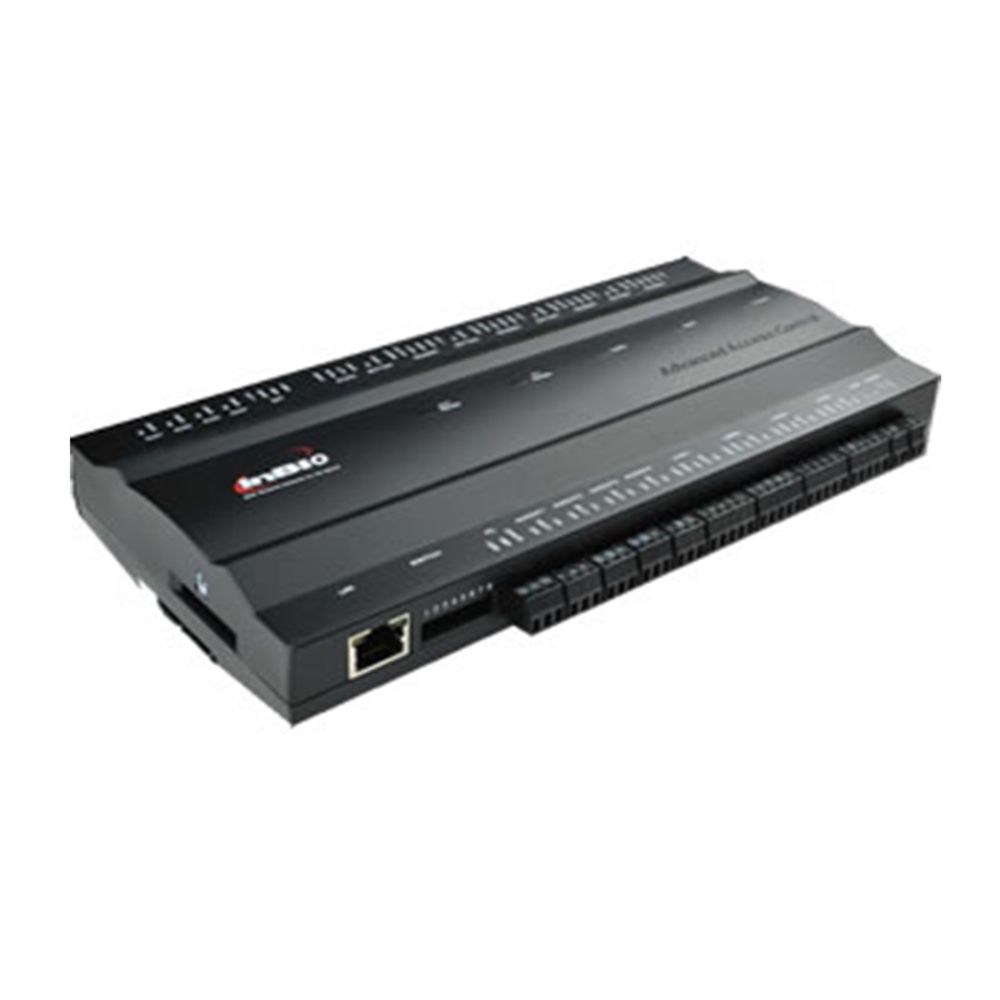

InBio carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modification of network parameters directly and easily. InBio controller firmware can be upgraded in the field.Stores up to 3,000 fingerprint templates, 30,000 card users, and up to 100,000 events and transactions. Controller is backed up in real-time in on-board SD card. Data is preserved if power is lost. InBio continues to operate if network connection is interrupted. Along with relay contacts for controlling door locks, easily programmable auxiliary relays can be used for additional control and interface to lights, alarms, intrusion detection panels, or even extra locking devices or gate controllers. SPECIFICATIONS: Capacity Users 30,000 Event Buffer 100,000 transactions CPU 32bit 400MHz CPU RAM RAM 32M Communication Communication RS485 Communication TCP/IP Reader Port 2 26/34bit Wiegand 2 8bit burst for PIN Input Port 4 Auxillary Input 4 Door Sensor 4 Request to Enter Output Port 4 1 Aux FORM-C relay output-SPDT 2A@30V AC 4 1 FORM-C relay output-SPDT 5A@36V DC or 8A@30V AC Baud Rate RS485 9600-38400 baud LED Indicator communication, power, status and prox card Power Power Supply 9.6V-14.4V DC, 1.5A Environment Operating Temperature 32-113 F (0-45 C) Operating Humidity 20% to 80% Dimensions Length 10" (160 mm) Width 6.6" (106 mm) Packaging Dimensions 15in x 3in x 11in Weight 7.8 lbs (3.55 kgs.).

• Stores up to 3,000 fingerprint templates, 30,000 card users, and up to 100,000 events and transactions
• Over-current protection, over-voltage protection, and reversal protection for the power supply and all of the input and output terminals Reliable network system of controllers using either TCP/IP or RS-485 Serial communication
• Supports different Wiegand formats, and connects to ZK readers as well as HID, Mifare, and generic ID card readers Connects with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators Can be integrated with other security systems such as CCTV, Intrusion Detection, Fire Alarm Release, and elevastor Control for total security system. Directly compatible with ZK’s biometric reader controllers

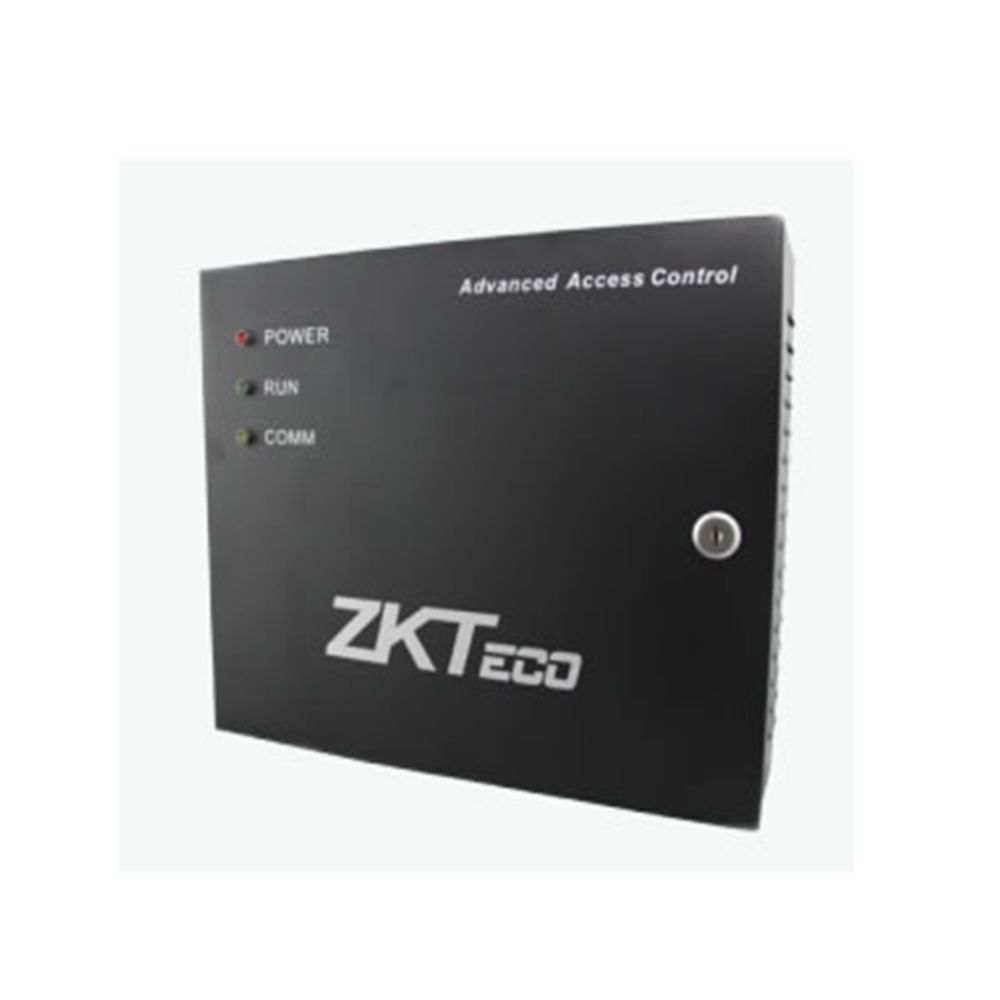

• Power Supply battery is not included in metal protection box / Image is for reference only.
•


• Parameter




  	InBio-160	InBio-260	InBio-460
  Number of doors controller	1 Door	2 Door	4 Door
  Numbers of readers supported	4(2 RS-485 Reader, 2 26-bit wiegand reader)	8(4 RS-485 Reader, 4 26-bit wiegand reader)	12 (8 RS-485 Reader, 4 26-bit wiegand reader)
  Types of readers supported	26-bit Wiegand and RS485 FR Series Reader	26-bit Wiegand and RS485 FR Series Reader	26-bit Wiegand and RS485 FR Series Reader
  Number of Inputs	3(exit Device and Door Status, 1 AUX)	6( 2 Exit Device, 2 Door Status, 2 AUX)	12( 4 Exit Device, 4 Door Status, 4 AUX)
  Number of Outputs	2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)	4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)	8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
  Card holders Capacity	30,000	30,000	30,000
  Fingerprint Capacity	3,000	3,000	3,000
  Log Events Capacity	100,000	100,000	100,000
  Communication	TCP/IP, RS-485 and WiFi optional	TCP/IP, RS-485 and WiFi optional	TCP/IP, RS-485 and WiFi optional
  Package Dimension	350(L)×90(H)×300(W)mm	350(L)×90(H)×300(W)mm	350(L)×90(H)×300(W)mm
  Package Weight	3.6kg	3.6kg	3.7kg
  CPU	32 bit 400MHz CPU	32 bit 400MHz CPU	32 bit 400MHz CPU
  RAM	32M	32M	32M
  Flash Memory	128M	128M	128M
  Power	9.6V-14.4V DC	9.6V-14.4V DC	9.6V-14.4V DC
  Operating Temp	0-45 °C	0-45 °C	0-45 °C
  Operating Humidity	20% to 80%	20% to 80%	20% to 80%
