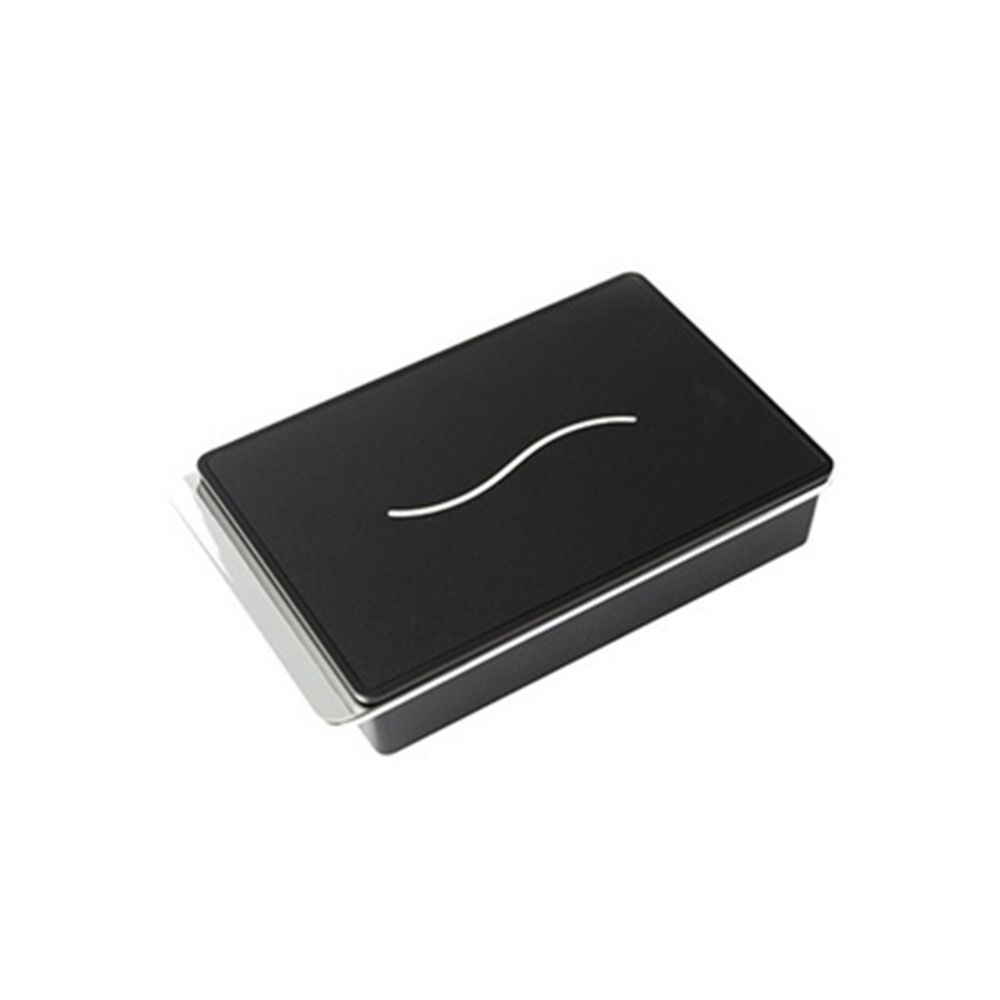

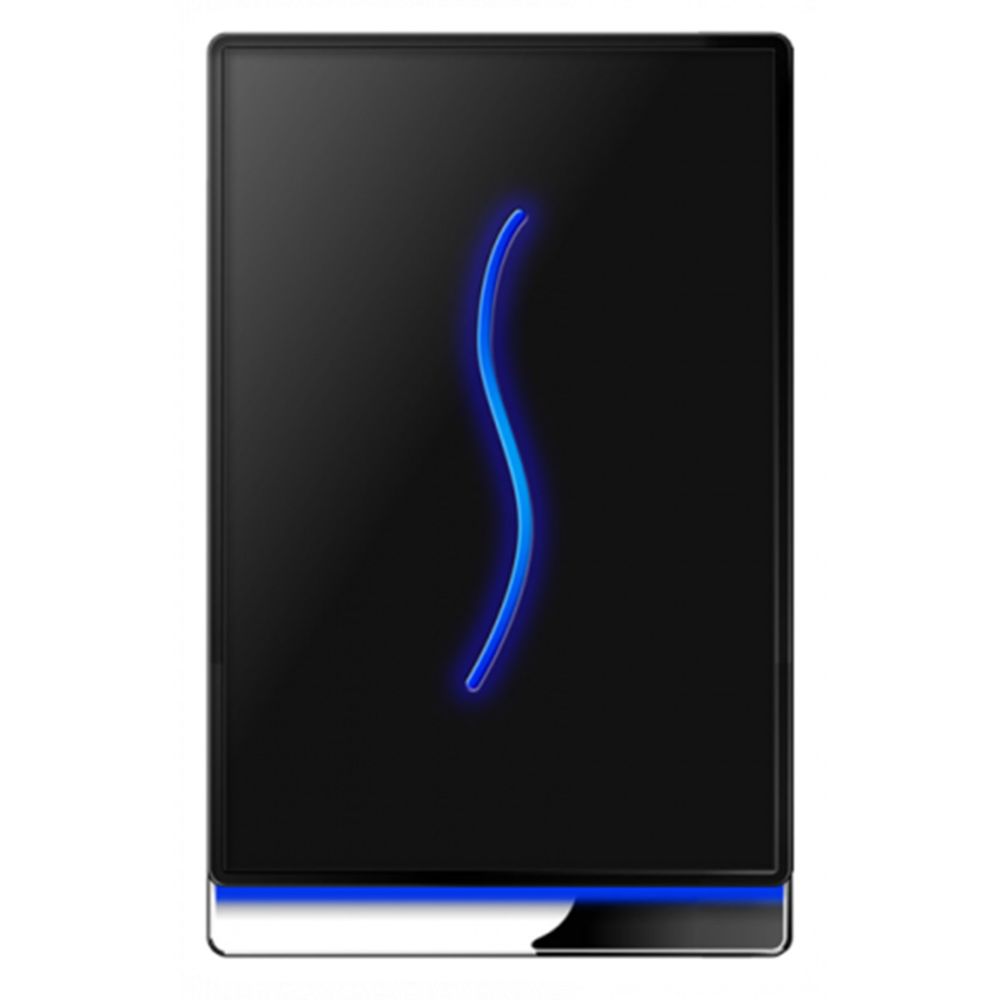

SCR100 is an access control terminal with incorporated proximity reader (EM by default).

With a modern and elegant design without keypad and display, it’s the perfect solution for small and medium access control installations. It can connect to access control management software by Ethernet or RS232/485 port, and also operate on standalone mode, downloading data by USB pendrive. Furthermore, this terminal includes embedded Web server software. For access control, it allows time zones and groups, holidays management, anti-passback functions and the relay can be connected to lock or external siren. It includes wiegand port to connect external proximity reader and it can be used as a controller’s external reader using Wiegand Out port.

FUNCTION

• Access control device
• Incorporates EM reader and optional Mifare, HID, etc..
• Stores up to 30000 users and cards.
• Stores up to 50.000 log records without PC download.
• Allows communication with PC through Ethernet and RS232/485
• It includes as standard Web server function
• Time zones, groups and holidays management for access control
• It has USB Host to download log records.

• Feature
  Capacity
  ID Card Capacity	30.000
  Transaction Capacity	50.000
  Hardware
  Platform	ZEM500
  CPU	32 bit ZK6001 microprocessor 400MHz
  Memory	4M RAM, 32M Flash
  Proximity	EM Module
  Relay contacts	Lock control, Alarm
  Display
  LED Indicator	Green / Red
  Environment
  Oper. Temp	0°-45°C
  Oper. Humidity	20%-80%
  Power
  Power	12V, DC 3A
  Communication
  Comm. Port	Ethernet, RS232/485
  Pen drive	USB-host
  Wiegand	In&Out
  Proximity Module
  Type	EM card
  Identification	<=1 sec
  Dimensions
  Dimensions	153x95.5x35.5mm (L x W x D)
  Weight	0.7kg
  Firmware
  O.S	Linux
  Applications	AC (groups and TZ)
