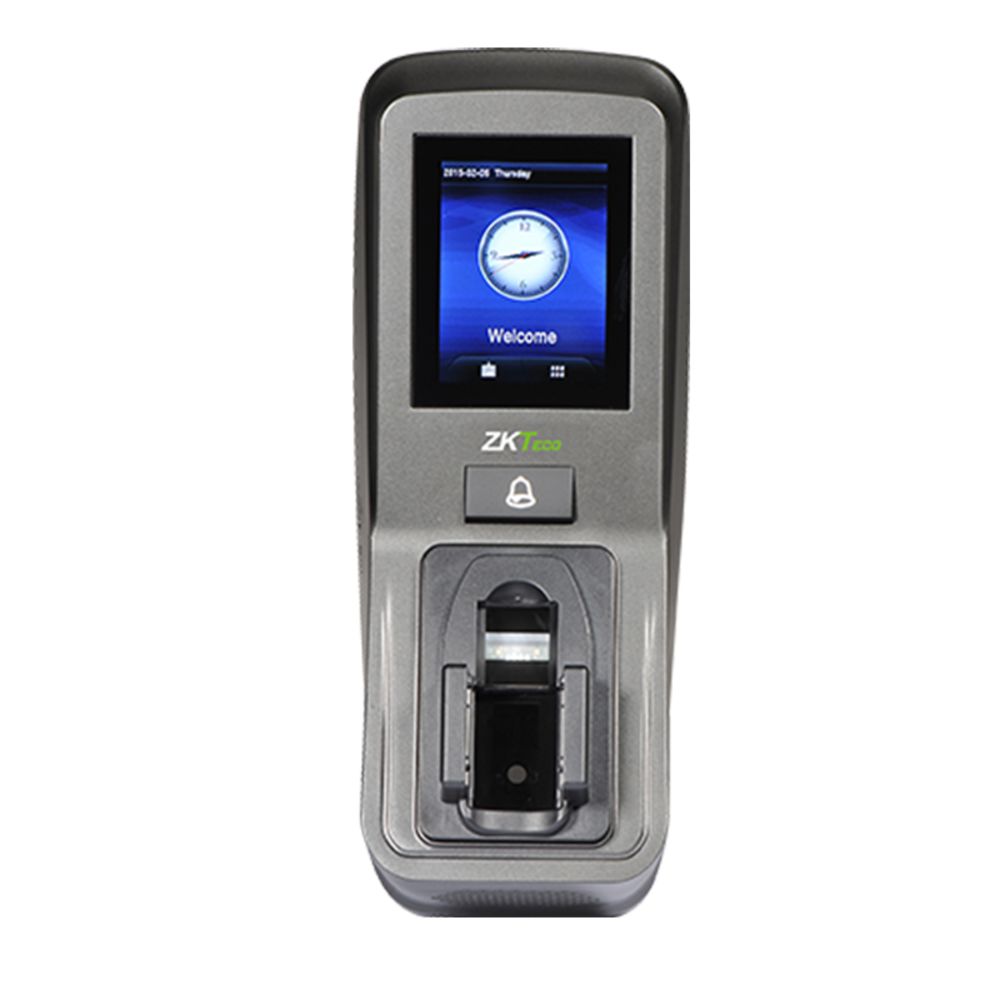

ZKTeco FV350 Finger Vein and Fingerprint Access Control Terminal
ZKtecoFV350 is a multi-biometric reader capable of capturing and processing finger vein and fingerprint biometric data at the same time. Ergonomic, intuitive and highly secured, FV350 leads us to a new era of enhancing security with biometrics. Its infra-red rays illuminates the vein pattern which is then converted into a biometric template. Both the vein and fingerprint templates are then stored in the database for subsequent matching.
Parameter
Core board | ZMM220 |
CPU | 1.2GMHz |
Communication | TCP/IP, RS485 |
Vein Capacity | 1,000 |
Fingerprint Capacity | 1,000 |
RF Card | EM, Mifare (optional 2,000) |
Authentication | Finger vein, fingerprint, password, card (optional) |
Auxiliary terminal | 1 Aux. input |
Wiegand | Wiegand in and out |
Display | 2.8-inch capacitive screen |
Operating Voltage | DC 12V 3A |
Operating Temperature | -10°C ~ 45°C |
Dimensions | 232mm×91mm×117mm(length×width×thickness) |
SDK | PULL SDK (new firmware) |
