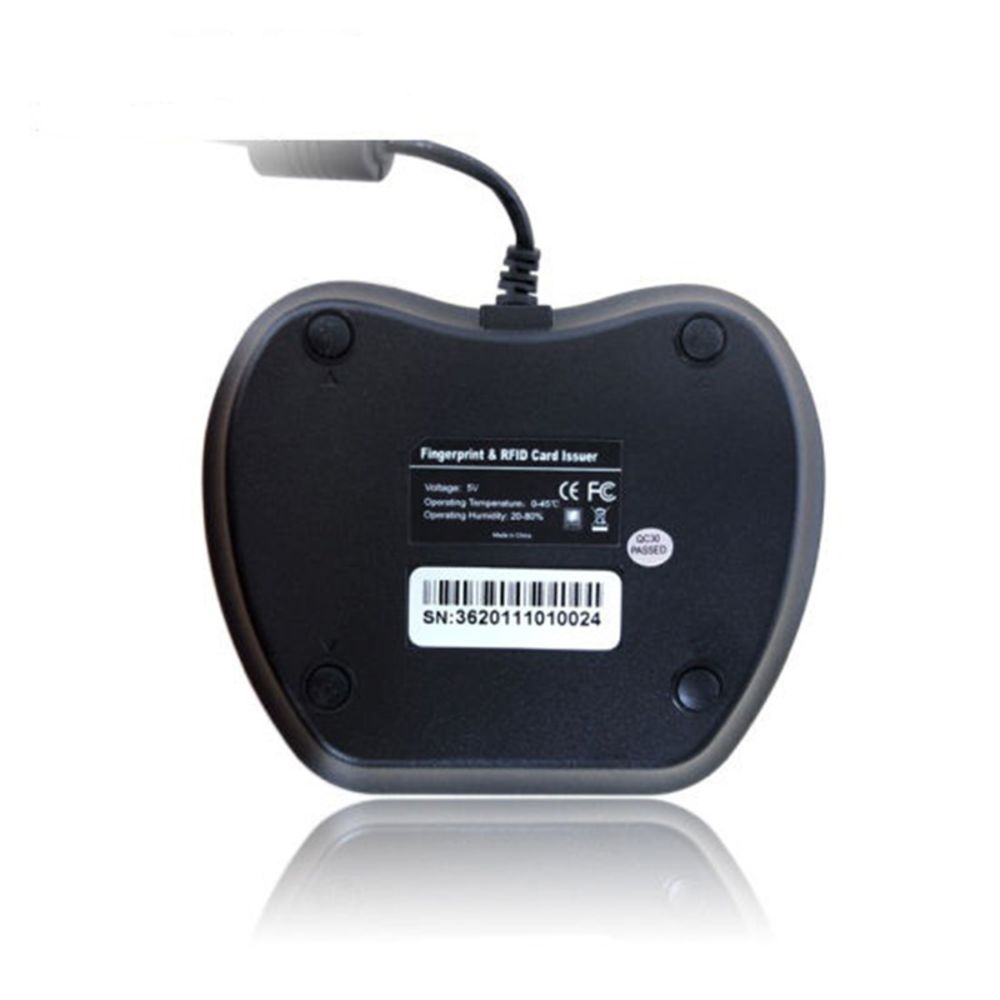

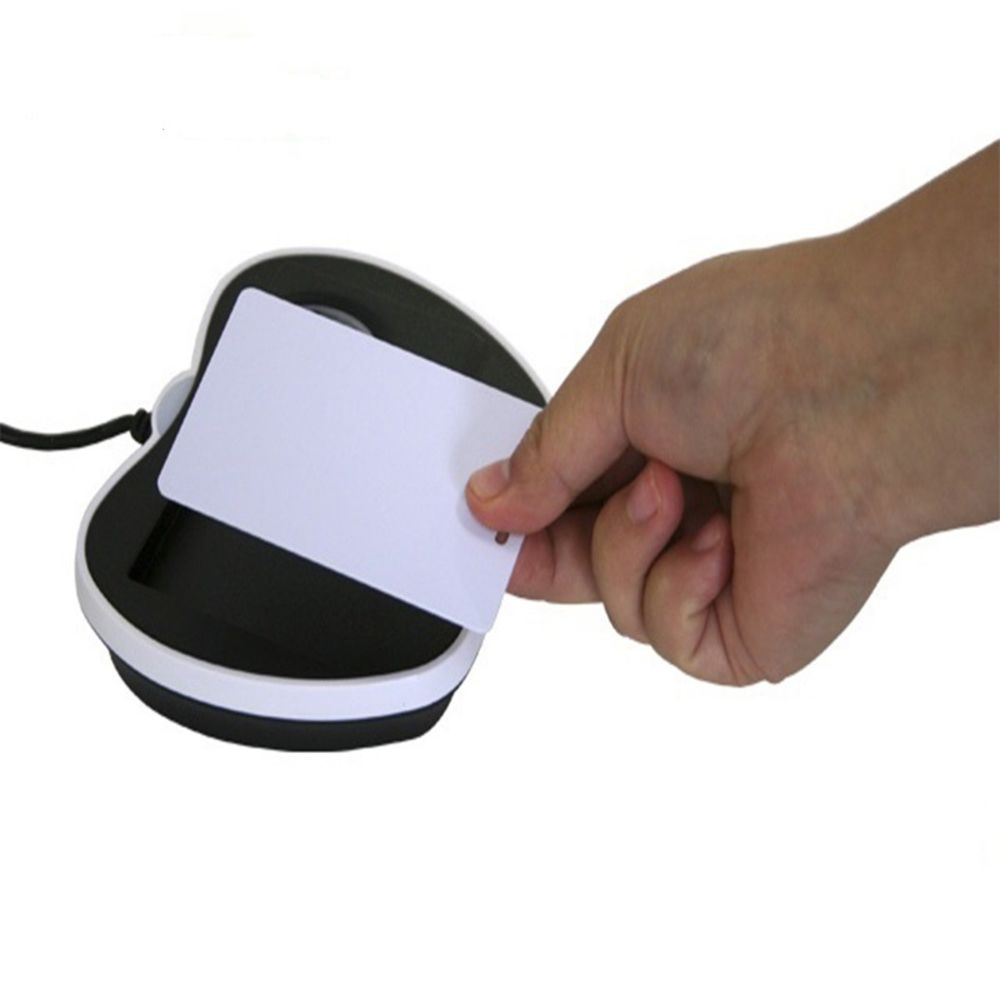

ZK8500R is a USB fingerprint scanner and card issue device that provides a simple and efficient way to register user fingerprints and card numbers with ZKTeco Software. This device can capture fingerprint image or read card serial number (ID/Mifare) directly and upload to the system by USB interface. ZK8500R would save money as it can work as ZK4500+CR10E+CR10M, and also can save time, especially when a high volume of users will be using ZKTeco systems on site.

Features Overview • Card issue and enroll user fingerprint • Read Mifare card and ID card number • High-performance optical fingerprint sensor • High quality industrial-class ABS plastic material • LED indicates the status of the device • Available SDK for further development.

Specifications

Model Name: ZK8500R

Material: Optical

CPU: 120MHz DSP

Flash: 16 KB

SoC: RTOS

Image Quality: 0.3 million pixels CMOS

Sunlight Operation: White filed, General Sunlight

Water Splash: YES

Card Reader: 125KHz EM & 13.56MHz Mifare

Operating System: Windows2000/XP/2003/Vista/7/8(32/64bit)

LED: Green

Product Certifications: FCC, CE, RoHS

Power Voltage: 5V (USB)

Power Current: 300mA

Communication: USB 2.0 / USB1.1 / USB1.0

Interface Socket: USB Type A

Image Resolution: 500 dpi

Effective Collecting Area: 13.24 * 15.7 mm

Collecting Area: 15.4*18 mm

Image Size: 280*360 pixel

Dimension: 124.5 * 102 * 34mm (L*W*H)

Gray Level: 256

Weight: 0.27kg

Operating Environment: -20 °C ~ +50 °C; 90% r.h.
