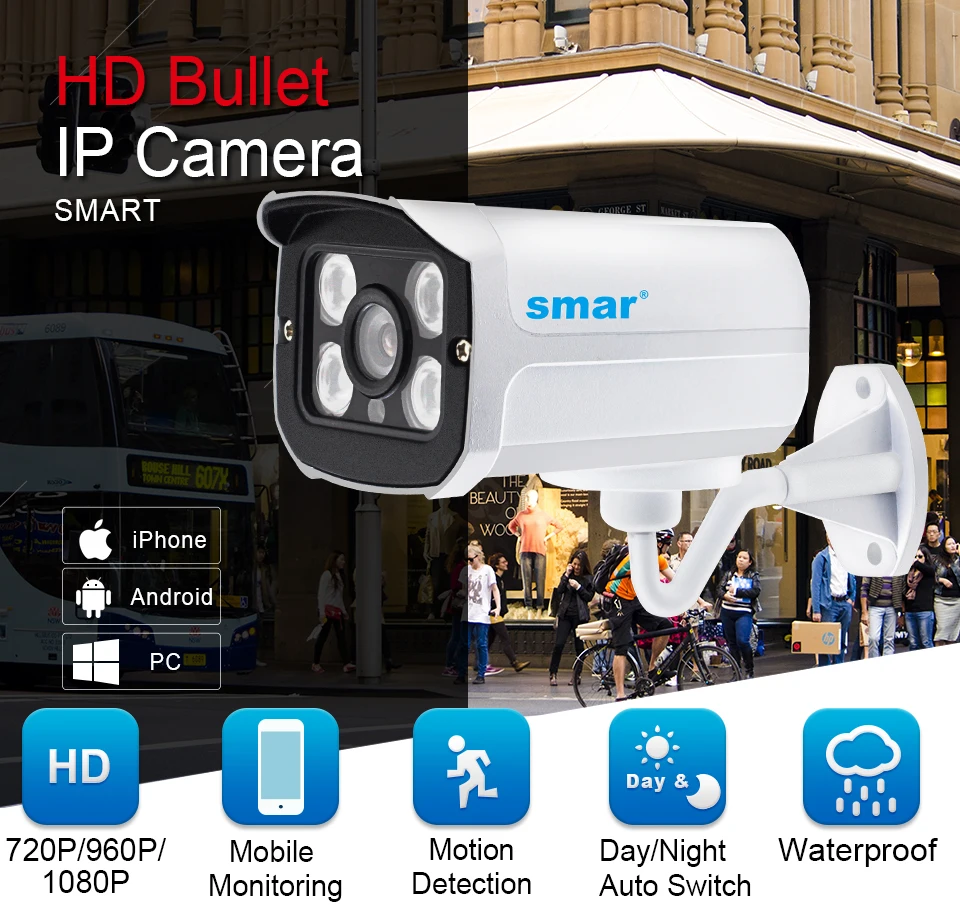

1280*720P Resolution 25FPS Real time, 1920*1080P Resolution 20fps Non Real time. H.264Video Compression For 720P, H.265 Video Compression For 1080P. Using XM CMS client, Supports P2P remote, does not need to open router ports without port mapping, Easy remote access. Support for international Onvif2.3 agreement, compatible onvif2.0. Support IE, Firefox, Google browser. Supports mobile phone remote access easily, AS: iPhone, Android. 4PCS IR LED With 15-20m IR Distance. Built in IR-CUT Filter,Day & Night Vision. High Quality Metal Case, Used Indoor/ Outdoor, Waterproof IP66. Standard lens: HD 3.6mm (2.8mm/6mmOptional). Standard DC12VIP Camera or 48V POE IP Camera(Optional.).
| Camera |
| Image Sensor: | | 1/4 inch H62 CMOS | 1/2.7 inch 2235 CMOS |
|
|
|
| Signal System: | PAL/NTSC | | Min Illumination: | Colour:0.1Lux/F1.2 B/W:0.01Lux/F1.2 IR-ON:0Lux | | Infrared LED: | 4pcs Array IR LED | | IR Distance: | 15-20 Meters (The difference of scene environment will lead to differences of IR distance) | | Day&Night: | IR cut filter with auto switch | | Lens: | Default 3.6mm (2.8mm,6mm,8mm optional) |
|
| Compression Standard |
| Video Standard: | | H.264+ | H.265/H.264+ Main Profile |
| | Bit Rate: | | 0.1M~6Mpbs variable | 0.1M~8Mpbs variable |
| | Dual Steam: | Support |
|
| Image |
| Max Resolution: | | 1280(H)*720(V) | 1920(H)*1080(V) |
|
|
| Frame Rate: | | 1280*720(25fps) | 1920*1080(20fps)
1280*720(25fps) |
|
|
| Image Settings: | Brightness, Saturation, Contrast, Hue adjustable | | Image Process: | AE, AWB, ABF, ABLC, Digital WDR ,2DNR/3DNR | | Digital WDR | Support | | 2DNR/3DNR | Support | | Image Orientation: | Flip and Mirror |
|
| Network |
| Network Storage: | NAS | | Alarm Trigger: | Motion Detection, Video Blind, Video Loss, IP address conflict | | Alarm Way: | Email Alarm or FTP Upload | | Protocols: | TCP/IP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP | | Transmission: | P2P penetrate automatic forwarding | | CMS: | Support remote client monitoring software MYEYE | | Compatibility: | ONVIF2.3 | | Mobile Monitoring: | Support Android, iPhone IOS |
|
| Interface |
| Communication Interface | 1*RJ45 10M/100M self-adaptive Ethernet interface | | Power port | 1*DC12V(5.5mm/2.1mm) |
|
| General |
| Reliability | Comprehensive lightning protection,in line with national and international standarda;7*24 hours 65 ? high temperature stable and reliable testing (camera board testing) | | Title OSD: | Channel name,Date | | Operating Conditi | -10°~60°,humidity 90% or less (non-condensing) | | Power Supply: | DC12V ± 10% | | Power Consumption: | Max.5W | | Waterproof | IP66 | | Housing Material: | Metal | | Weight: | 0.36kg(about) |
|
