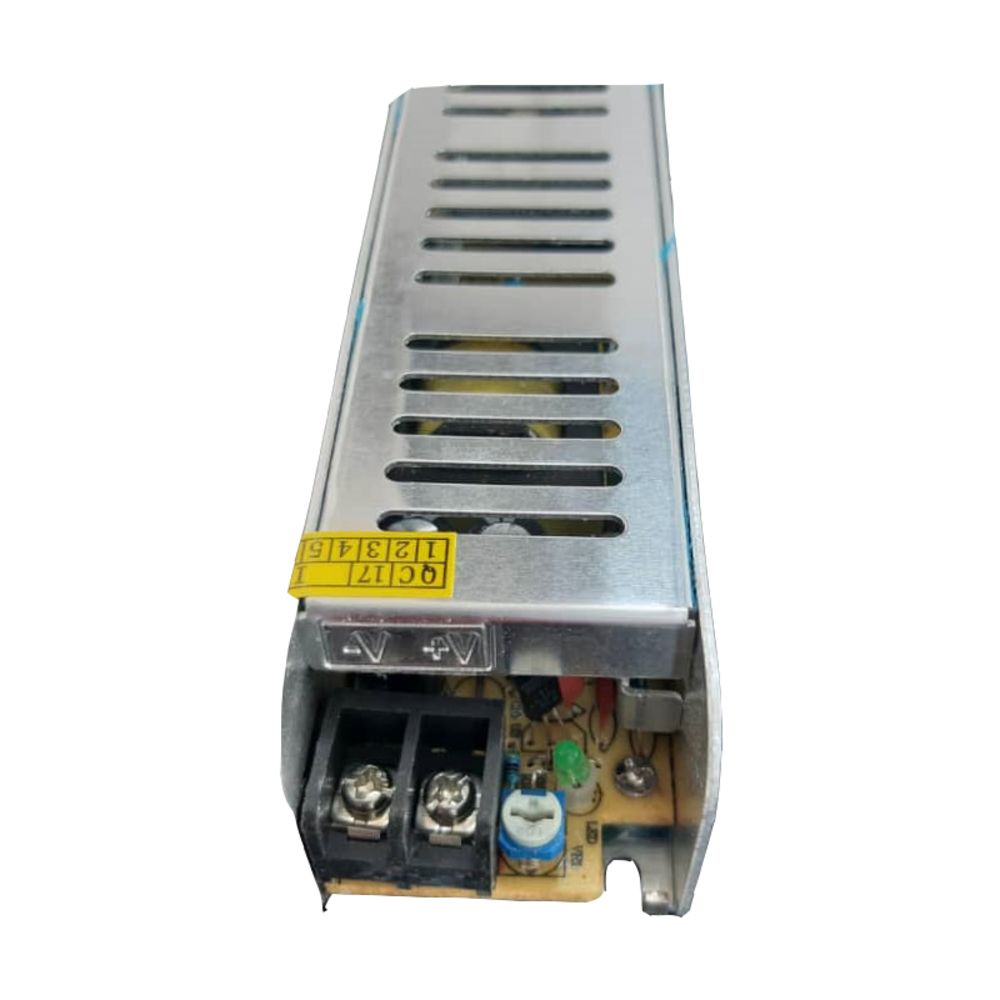

Slim case led power supply 5A 12V
TSES
1. International AC input range
2. High efficiency ,low working temperature
3. Short circuit ,overload ,over-current portection
4. 100% fully load burn-in test
5. Built-in EMI filter ,low ripple noise
6. Low cost ,high reliability
7. CE and Rohs appoval .2 years Warranty
8. OEM and ODM is welcome
Specification:
1. International AC input range
2. High efficiency ,low working temperature
3. Short circuit ,overload ,over-current portection
4. 100% fully load burn-in test
5. Built-in EMI filter ,low ripple noise
6. Low cost ,high reliability
7. CE and Rohs appoval .2 years Warranty
8. OEM and ODM is welcome
Technical details:
| Model | S-60-12 | S-60-24 |
| AC input voltage range | 110-240V | |
| Input current | 0.5A/115V 0.25A/230V | |
| AC impulse current | Cold-start current 13A/115V 26A/230V | |
| DC output voltage | 12V | 24V |
| DC output power | 60w | 60w |
| Rated output current | 5A | 2.5A |
| Output voltage error | +-1% | +-1% |
| Efficiency | 85% | 85% |
| Wave and noise | 100mVp-p | 100mVp-p |
| Inlet stability | +-5% | +-5% |
| load stability | +-5% | +-5% |
| leakage current | <0.5mA/240VAC | |
| Overload protection | 105%-150% rated power,automatically recovery | |
| Vibration | 10500Hz,2G 10min./1cycle,period for 60min,Each axes | |
| Cooling method | Natural cooling air convection | |
| Working temperatuire and humidity | -20°-60°c/20%-90%RH(no frost) | |
| Safety standards | CE (EMC+LVD), Rohs | |
| Dimension | 160*40*32mm | |
| weight | 0.18kgs | |
