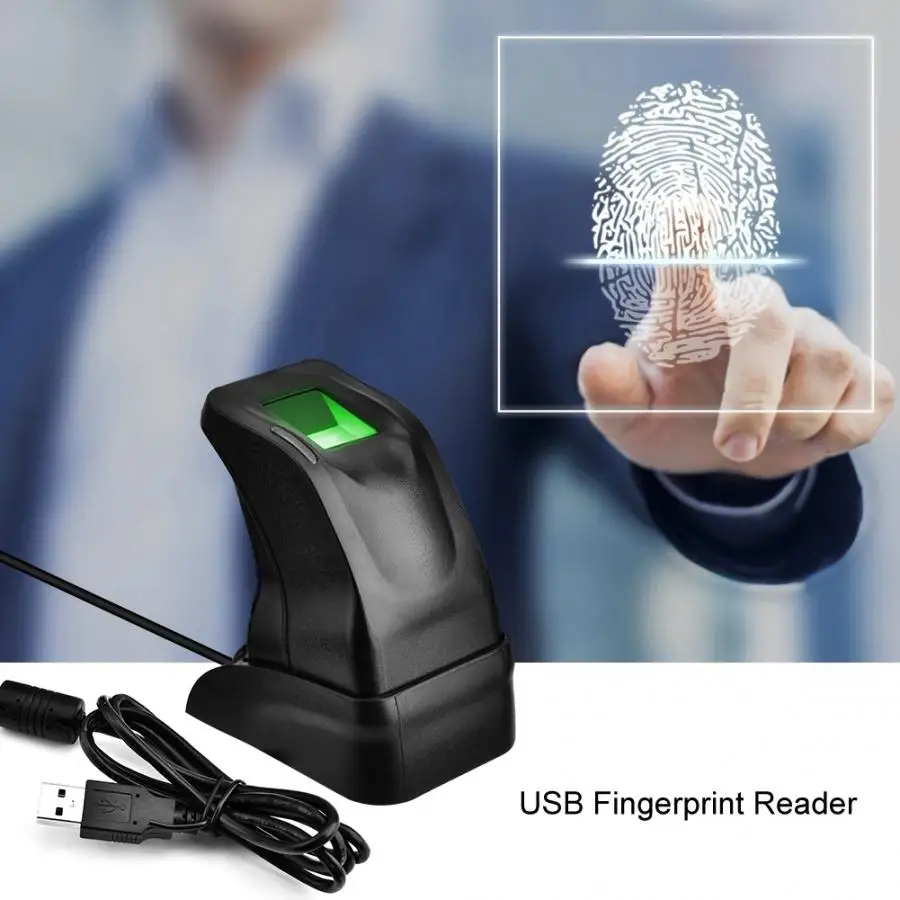

ZK4500 is a stable and excellent fingerprint scanner. The device can capture fingerprint image and upload to the PC by USB interface. It supports Windows 2000/XP/2003/Vista/7(32/64bit) and Linux OS. We provide developer with SDK. The developer can integrate the hardware into their own system. This product is widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.

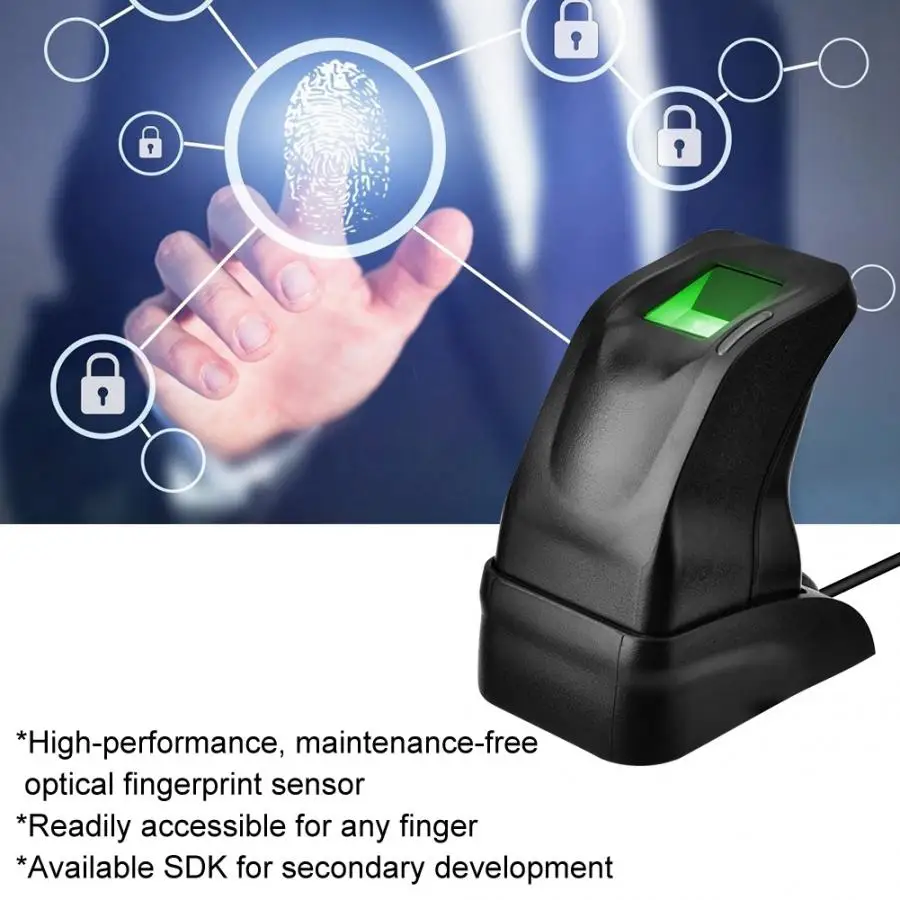

Features Overview • High-performance, maintenance-free optical fingerprint sensor. • Readily accessible for any finger • High quality industrial-class ABS plastic material with scratchproof texture surface treatment • Removable weighted stand • High speed USB interface • LED indicates the status of the device • Driver CD included • Available SDK for secondary development .

Specifications

Model Name: ZK4500

Material: Optical

CPU: 120MHz DSP

Flash: 16 KB

SoC: RTOS

Image Quality: 0.3 million pixels CMOS

Encrypted Fingerprint Data: NA

Sunlight Operation: White filed, General Sunlight

Water Splash: YES

Dry, Wet, or Rough Fingerprints: General Level

Power Consumption: 5V:200mA Scanning; 5V:90mA idle (waiting for finger)

Live Fingerprint Detection: NO

LED: Green

Product Certifications: FCC, CE

Power Voltage: 5V (USB)

Power Current: 200mA

Communication: USB 2.0 / USB1.1 / USB1.0

Interface Socket: USB Type A

Image Resolution: 500 dpi

Effective Collecting Area: 13.24 * 15.7 mm

Collecting Area: 15.4*18 mm

Image Size: 280*360 pixel

Dimension: 65.5 * 48 * 79.8mm (L*W*H)

Image Format: BMP

Template: ZKFinger V10

Template: Size <2KB, (ZKFinger V10.0);1568 B (ISO 19794-2)

Gray Level: 256

Weight: 0.25kg

Operating Environment: -20 °C ~ +50 °C; 90% r.h.
