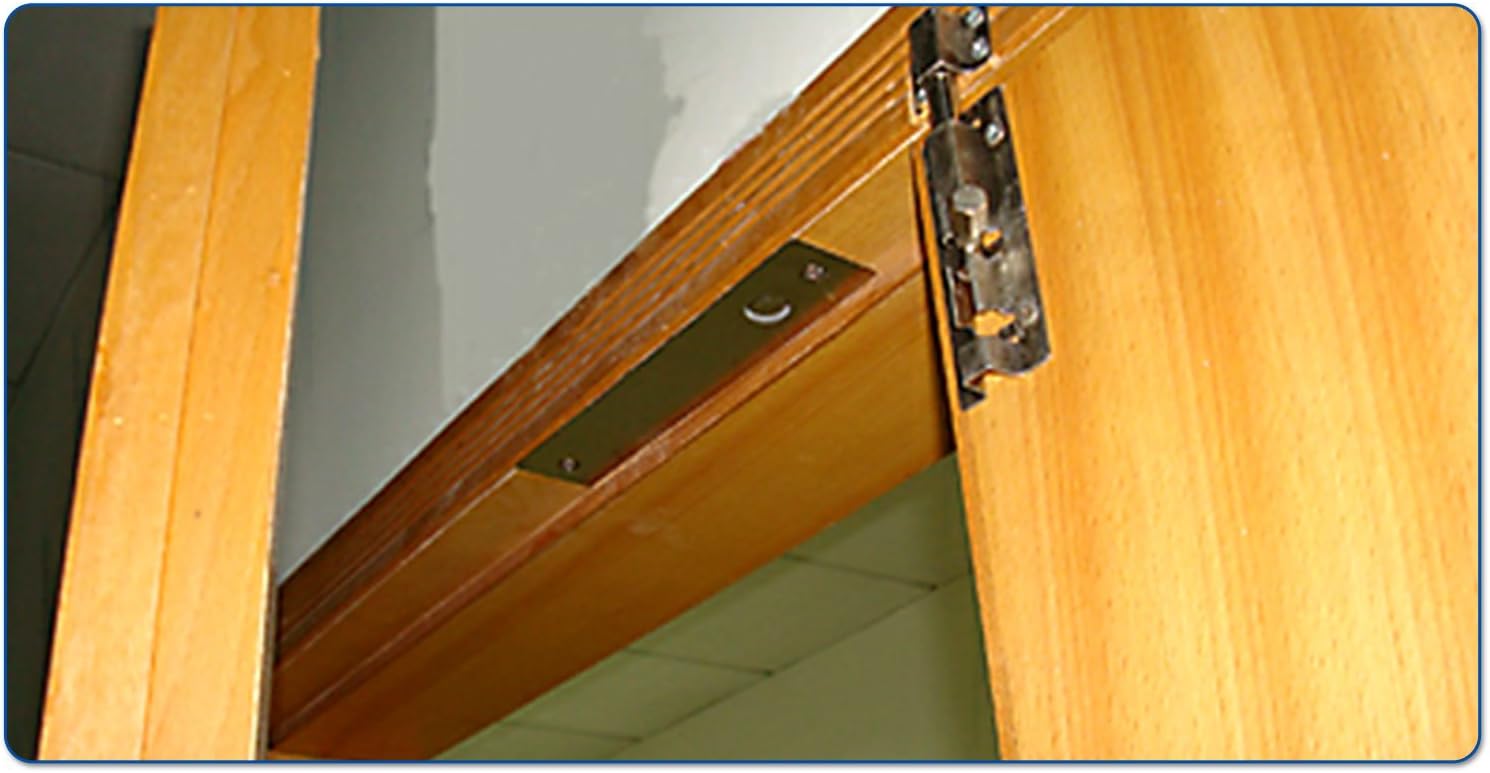

This look is applicable for office buildings and frame door at the entrance of residence community. The product advantage: Recessed type installation and pleasant-looking appearance. the electromagnetic part adopts high-quality magnetic materials and special processing workmanship to ensure no residual magnetism even after long time operation. this lock was designed and manufactured based on electronic, mechanical and mechanics principle to realize low-current operation and reduce rate of failure and maintenance. auxiliary bracket can be used for installation of frameless glass door. door opening: 180 and available for load of 1000kg.

• Simple and convenient operation
• NC (locked while supplied with power)
• Fail safe
• Built-in voltage spike suppressor
• Magnetic

Specifications:

NC mode - (locked while supplied with power), fail safe mode
Suitable for : wooden door, glass door, metal door, fireproof door, etc
Safety function : built-in voltage spike suppressor
Material : stainless steel


Technical Information:
Operating Mode : NC (locked while supplied with power), fail safe mode
Voltage : DC 12V, 1A
Current :
-Start : 0.45A
-Standby : 0.45A

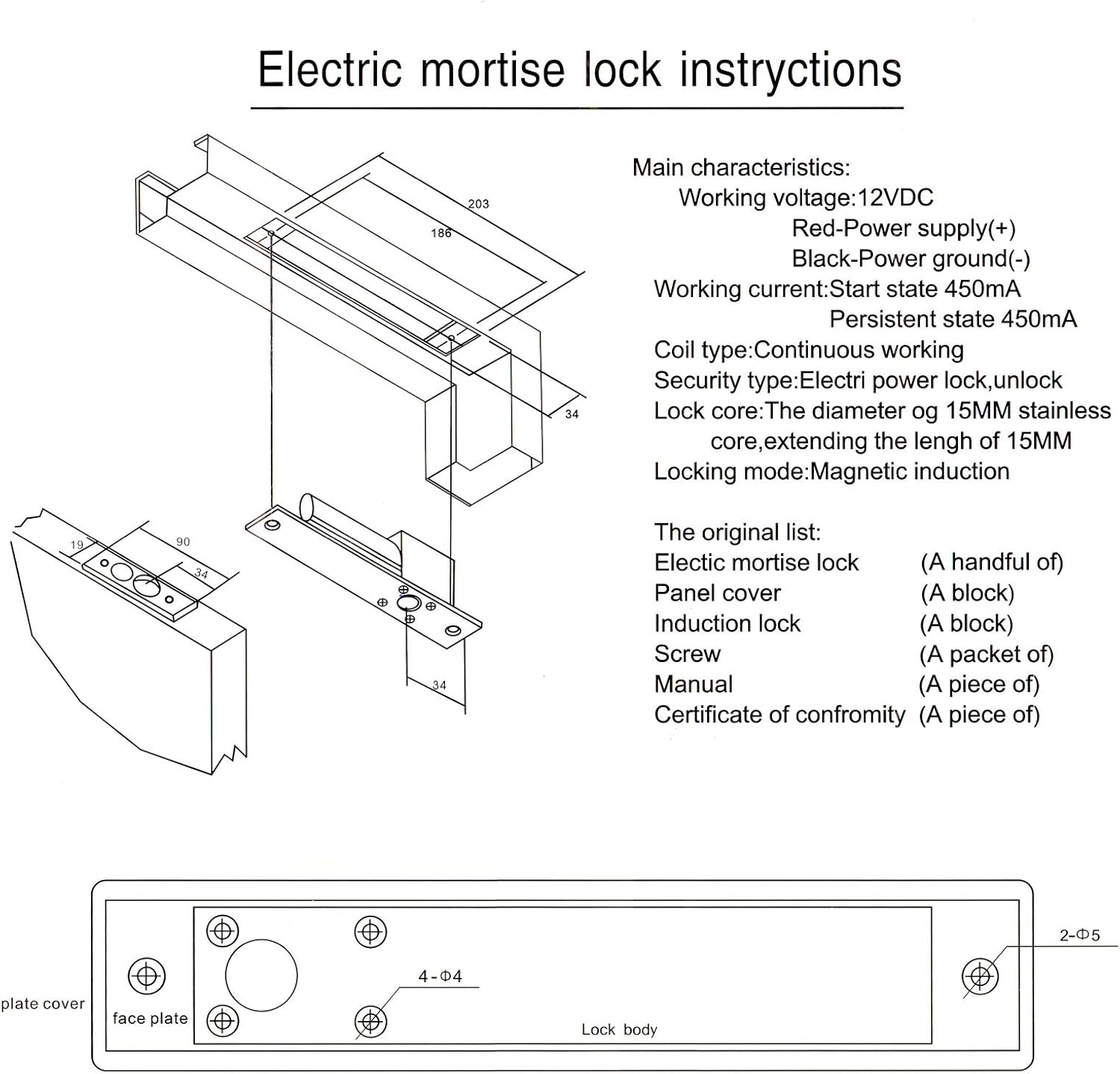

Dimensions (Magnetic base) :
- Approx. 25 (W) x 90 (H) x 3 (D) mm
- Approx. 1" (W) x 3-1/2" (H) x 1/8" (D) inch
Dimensions (Main body) :
- Approx. 35 (W) x 205 (H) x 45 (D) mm
- Approx. 1-3/8" (W) x 8" (H) x 1-3/4" (D) inch


Package includes:
1 x Electric Drop Bolt Lock
1 x Magnetic Base
1 x Faceplate
1 x User Manual
1 x Installation Kit
